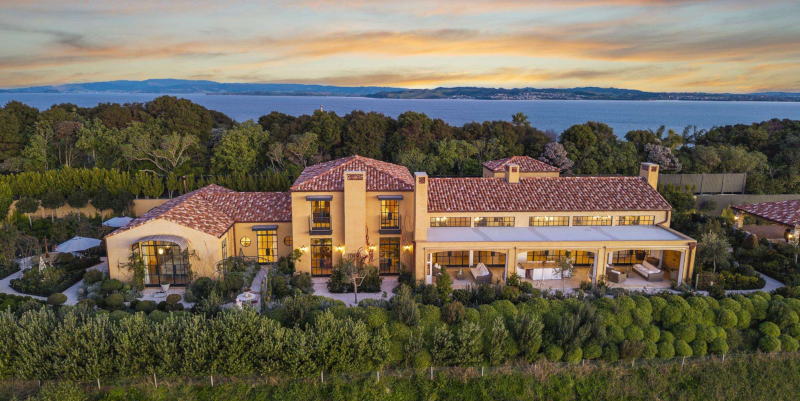

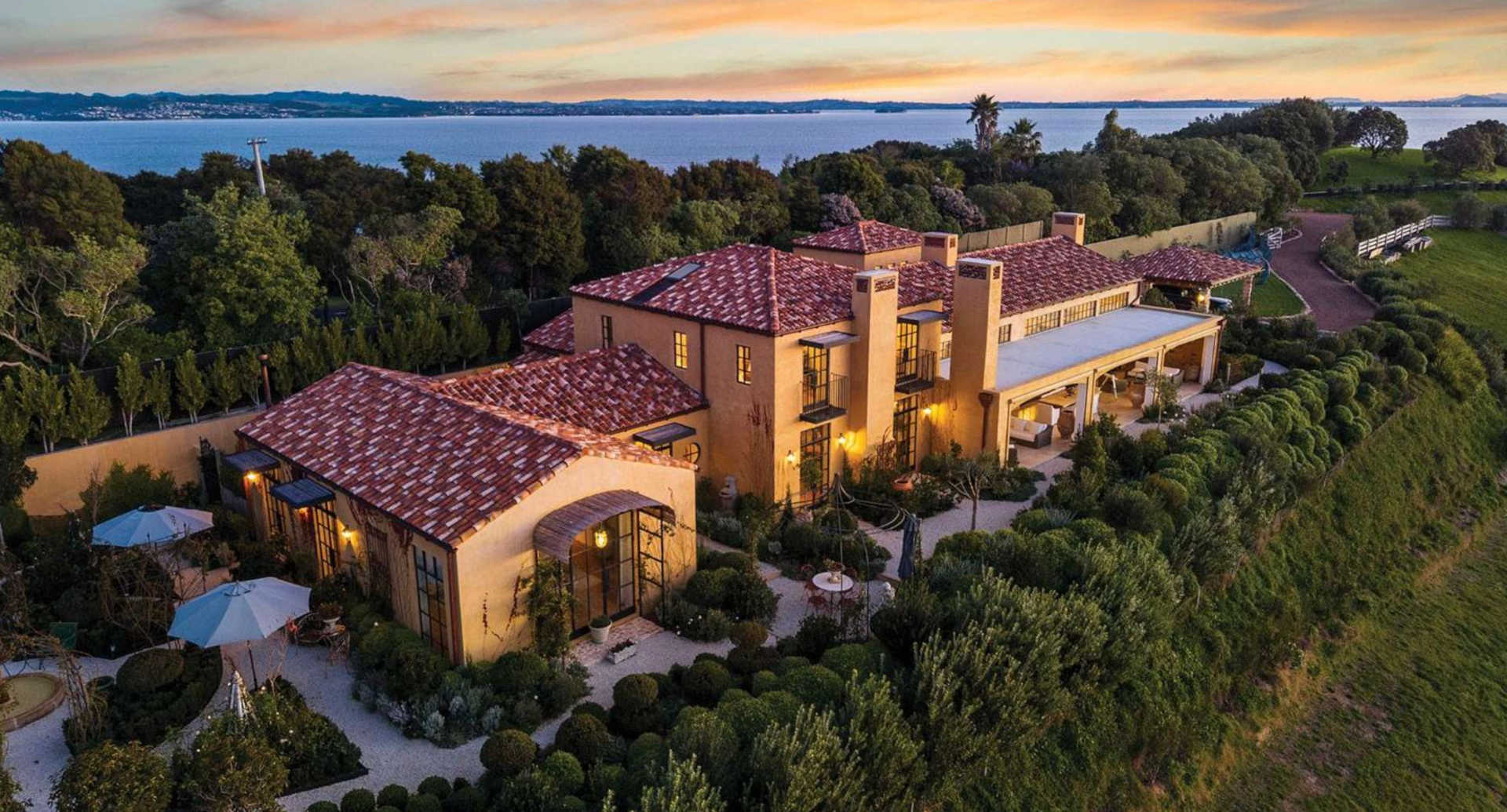

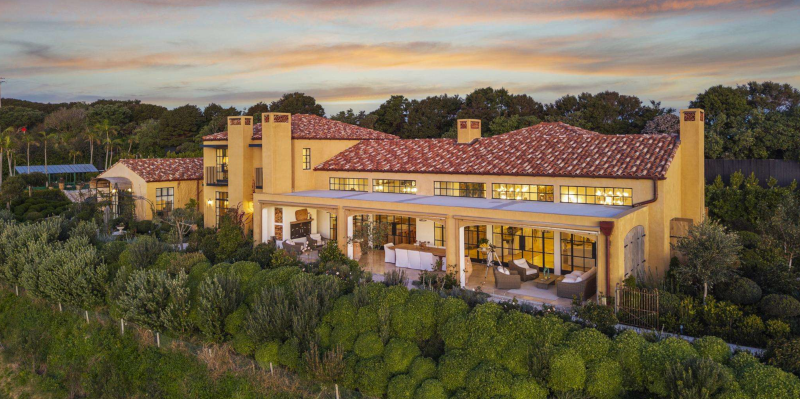

Tuscany style mansion
Waiheke Island, Auckland, New Zealand

Key specification

Roof assembly: Micro-ventilated roof substructure.

Material: Made in Italy Tuscan clay tiles.

Sheet-metalwork:

• 0.80 mm copper valleys, gutter valleys, drip edges, chimney and skylight flashings.
• Copper anti-bird comb.

Water drainage system:

• 0.80 mm half round copper gutter , 330 mm, with accessories.
• 0.70 mm copper downpipes and accessories.

Overview

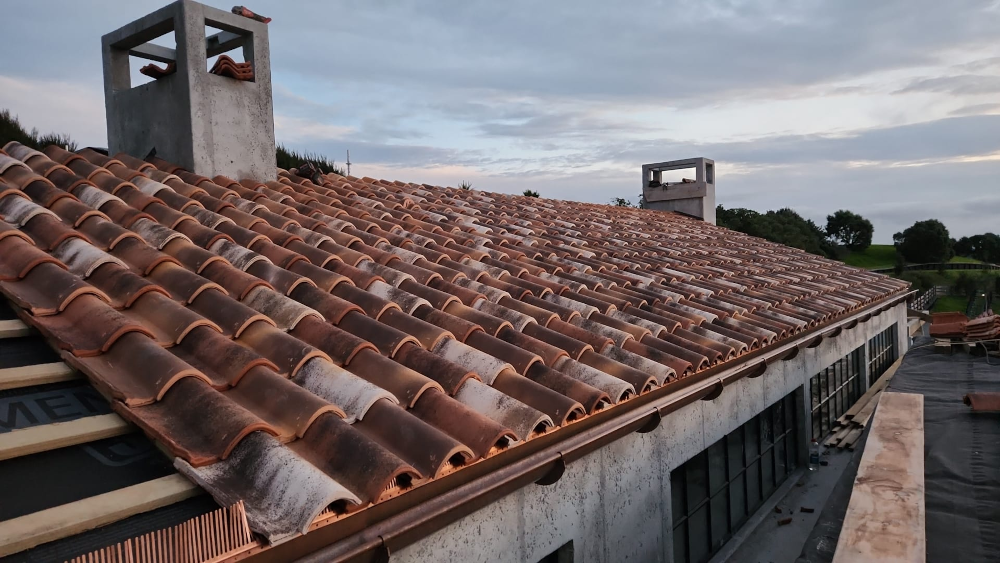

This project involved the installation of a new Tuscan-style roof using made in Italy barrel clay tiles in a mixed colourway, selected to ensure full aesthetic harmony with the home’s Mediterranean/Tuscan architecture.

A new micro-ventilated roofing system was incorporated, combining a breathable waterproof protection layer with continuous passive ventilation. This solution supports consistent airflow beneath the tiles, helping manage summer heat and control moisture build-up, improving comfort and roof durability.

All flashing details were custom-fabricated from premium Italian 0.80 mm copper to provide robust performance and long service life in exposed coastal conditions.

The rainwater system was completed with high-quality, made in Italy rounded copper gutters and copper downpipes, delivering excellent rigidity, flow capacity, and long-term corrosion resistance. The fixing method, heavy-duty copper brackets mechanically anchored into the wall structure, creates a rigid installation with exceptional load resistance. All copper joints are brazed to ensure a premium finish consistent with the overall quality level of the residence.
